Gravotech M40 Engraving Machine
A compact machine that is not out of place retail establishment or workshops. This machine is ideally suited for small retail applications and with the addition of the large plate holder is capable of engraving plates 305mm x 210mm
  • Compact: With a footprint of 550mm x 510mm x 320mmo
  • Gravograph's original and trusted self-centering vice system for easy clamping of items to be engraved
  • Choice of work holding jigs allows easy holding of flat plates, Watches, Bracelets, Pens, Rings, ID Tags, Pet Discs etc.
  • With the addition of the large plate holder the capacity increases to 305mm x 210mm
  • Uses Gravogrip for quick and easy clamping on work table
  • Supplied as standard with the very user friendly "Quick Click" software Upgrade options are available
  • Powerful 50 Direct Drive Spindle for efficient engraving on metals

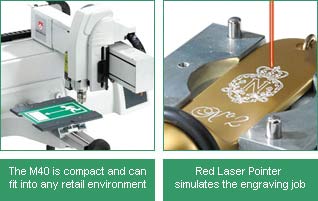

  • Laser Pointer enables accuracy of engraving location
  • Depth regulating Nose Cone system gives consistent depth of Engraving on un-even surfaces
Click to enlarge.
M40 Engraving Machine IM4 Engraving Machine IM4 Engraving Machine IM4 Engraving Machine

To Download PDF - click here

Available Accessories for Gravotech M40
  • Large plate support (Increases capacity to 305mm x 210mm)
  • Gravogrip adhesive work holding sheet
  • Pen attachment (5-15mm Diameter / 160mm max length)
Software Options
  • Test list import / List of Names / Matrix - option for Quick Click
  • HPGL and DXF files import filters for logo input - option for Quick Click
  • Font Pack for Quick Click (50 high quality hand digitised fonts)
  • Upgrade available to the G5 range of software as used on the large Industrial range of machines
For Rotary engraving capacity see our page on Gravotech M40G

For information on our extensive range of Cutters and Diamonds available for this machine see our "Cutters & Diamonds" pages
